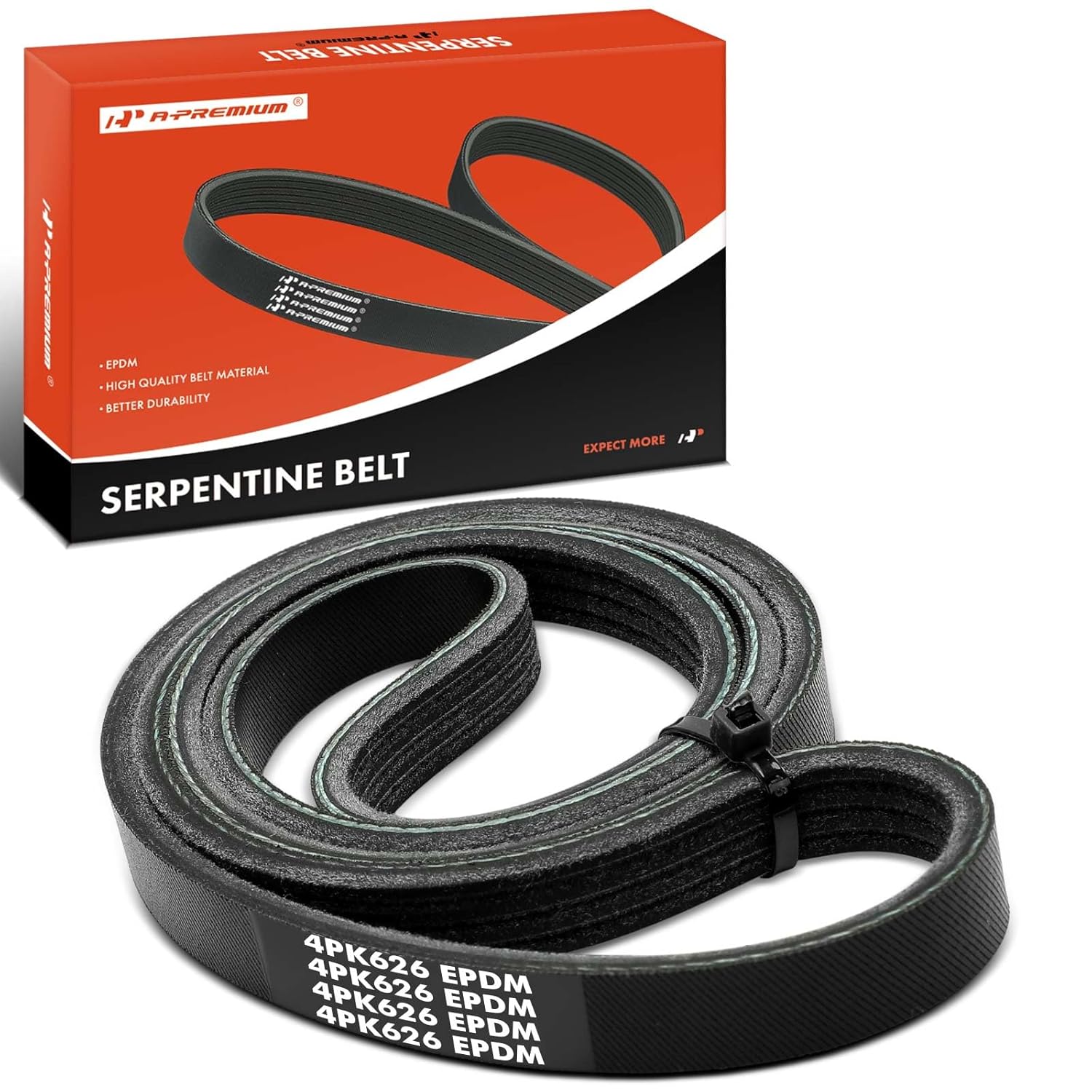

Engine Serpentine Drive Belt for Toyota Yaris and Echo

For Toyota Yaris 2006-2012, and Echo 2000-2005 – 1.5L

Application

• Toyota Echo 2000-2002 – 1.5L
• Toyota Echo 2003-2005 – 1.5L
• Toyota Yaris 2006-2011 – 1.5L
• Toyota Yaris 2012 – 1.5L

Reference Part Numbers

K040465
1867503390
9091602194
9091602302
9091602378
9091602384
9091602500
9091602501
9936491180
25040465

Specifications

• Belt material: EPDM
• Cord material: Polyester
• Cross-section designation: K
• Effective length: 46.5 in
• Outside circumference: 47 in
• Rib quantity: 4
• Top width: 0.56 in

Features

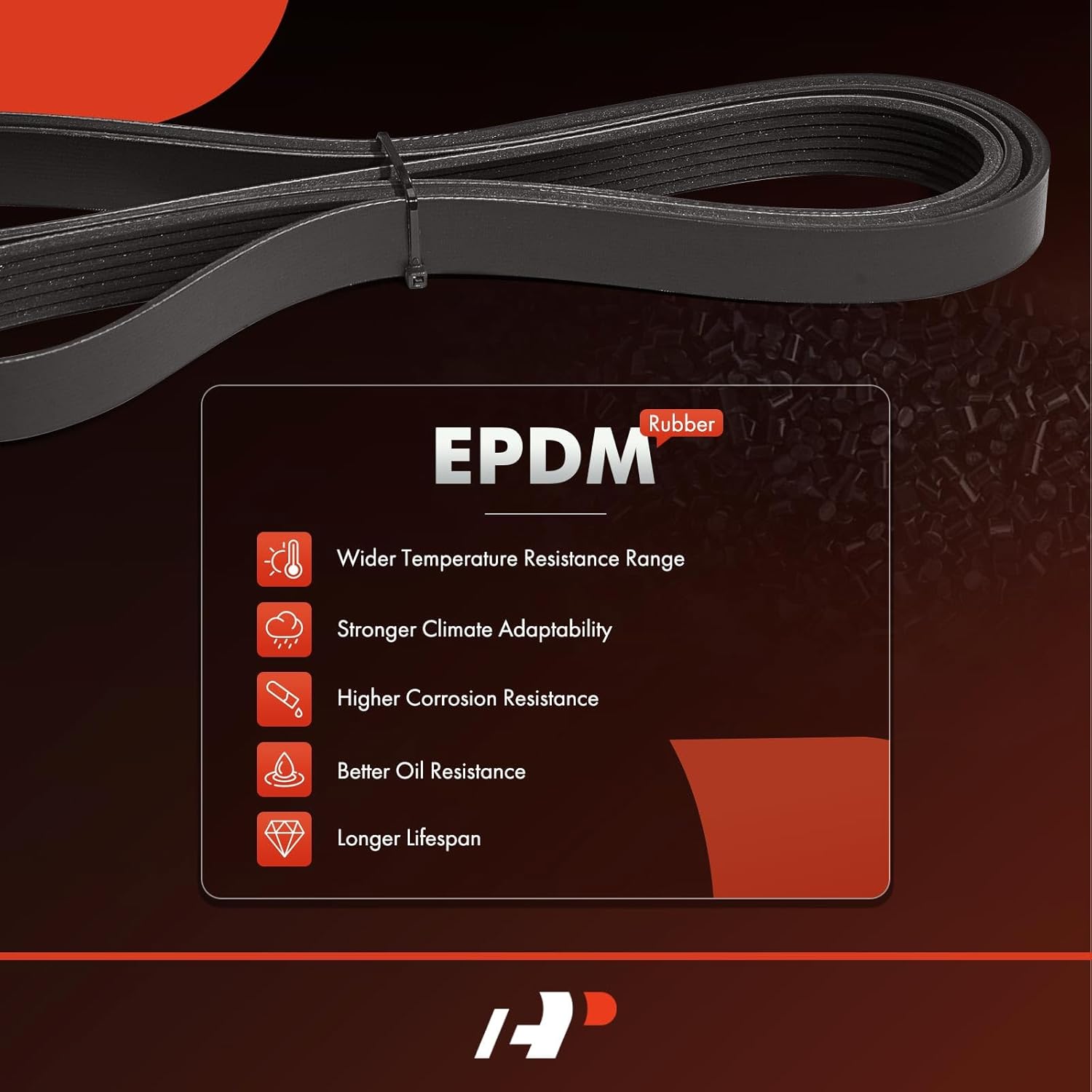

• Constructed from premium EPDM rubber for superior resistance to cracking, oil, heat, and contaminants
• Polyester cord for durable strength and stable operation under load
• Precision-engineered dimensions promote correct tension, alignment, and reduced vibration/noise
• Designed for quick, tool-friendly installation while delivering industrial-grade reliability in high-temp/high-load conditions
• Recommended: inspect the belt tensioner and pulleys before installation to ensure long-term performance

Warranty

This serpentine drive belt comes with a one-year, unlimited-mileage guarantee.
