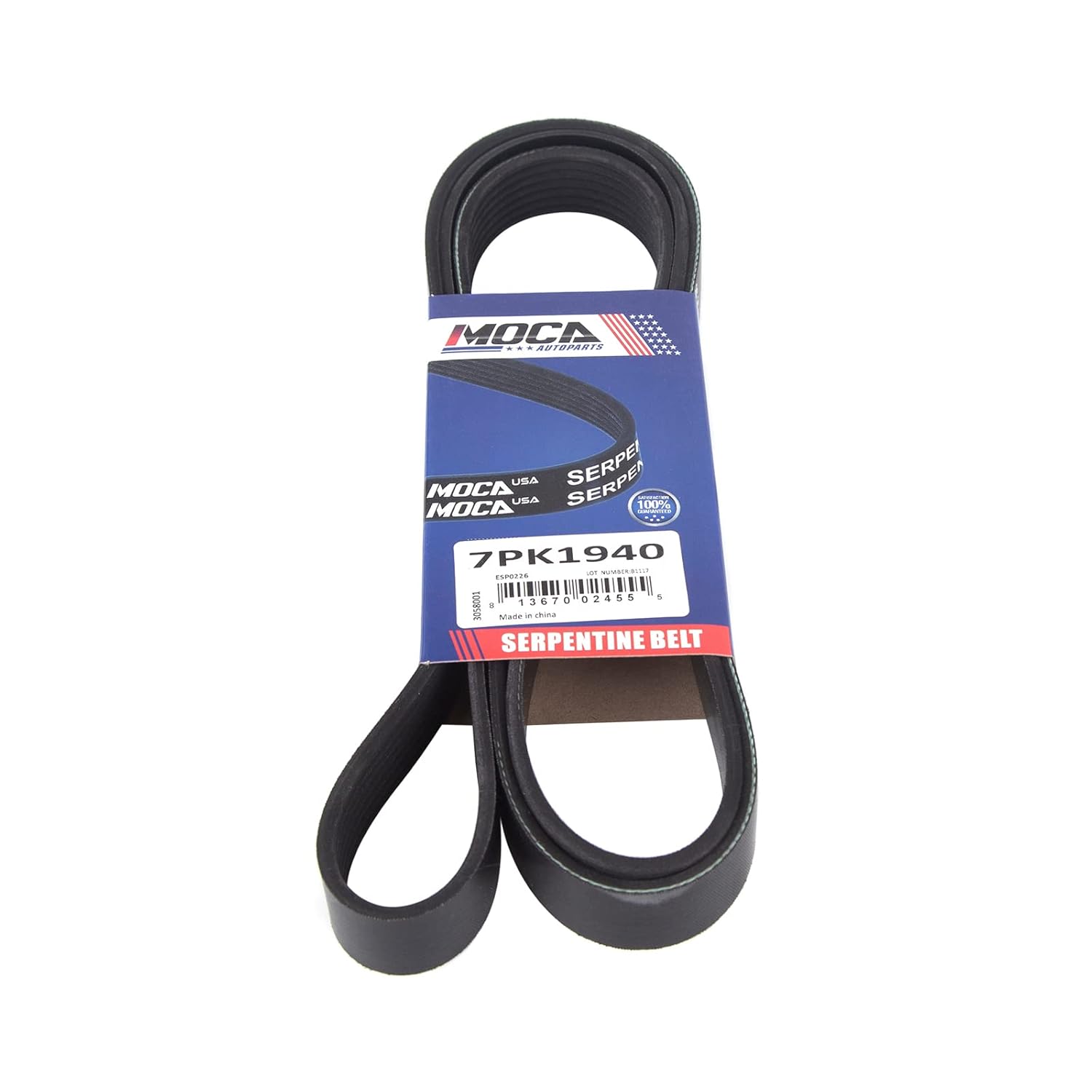

Serpentine Belt for Select Toyota and Scion Models, including the Scion TC 2.4L

High-quality replacement serpentine belt engineered to provide reliable accessory drive performance for select Toyota and Scion 2.4L models.

Compatible Vehicles

2007-2009 Scion tC – 2.4L
2004-2006 Toyota Solara – 2.4L
2004-2006 Toyota Camry – 2.4L

Please confirm fitment for your specific vehicle before purchase.

What’s in the box

1 x serpentine belt

Part Numbers

7PK1940
K070763RB
5070763

Features

-Constructed from EPDM rubber for excellent resistance to heat, cracking, and wear
-Manufactured to meet or exceed OEM performance and quality standards
-Direct-fit replacement to restore proper accessory drive function
-Durable design for long service life and reliable operation

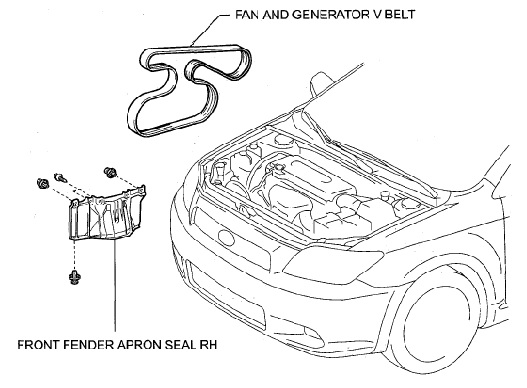

REMOVAL

1. REMOVE FRONT FENDER APRON SEAL RH
2. REMOVE FAN AND GENERATOR V BELT
a. Loosen the V-ribbed belt tensioner arm clockwise, then remove the fan and generator V belt.

INSTALLATION

1. INSTALL FAN AND GENERATOR V BELT
a. Loosen the V-ribbed belt tensioner arm clockwise, then install the fan and generator V belt.

NOTE:
When retracting the tensioner in any of the procedures above, always turn it clockwise slowly in 3 seconds or more. Do not apply force rapidly. After the tensioner is retracted all the way, do not apply force any more than necessary.
